Solid Cast Iron Shaft Collars

Solid cast iron collars are the heavy-duty type and are available up to 8" shaft size. They are machined all over and fastened to the shaft with socket head screws.

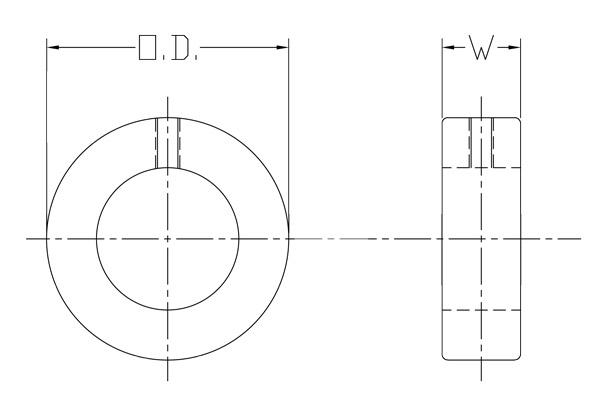

solid cast iron shaft collar diagram

Shaft
Size

Part
Number

Weight

Outside
Diameter

Width

1 15/16
2
60-10-0115
60-10-0200

1 3/4

3 3/8

1 3/8

2 7/16
2 1/2
60-10-0207
60-10-0208

3

4 1/4

1 1/2

2 15/16
3
60-10-0215
60-10-0300

5

5

1 5/8

3 3/16
3 1/4
60-10-0303
60-10-0304

7

5 1/2

1 5/8

3 7/16
3 1/2
60-10-0307
60-10-0308

8

5 3/4

1 3/4

3 11/16

60-10-0311

9

6 1/4

1 3/4

3 15/16
4
60-10-0315
60-10-0400

10 1/2

6 1/2

1 7/8

4 3/16

60-10-0403

11

7

1 7/8

4 7/16

60-10-0407

13 1/2

7 1/4

2

4 15/16

60-10-0415

17

8

2 1/8

5 7/16

60-10-0507

20

8 3/4

2 1/8

5 15/16
6
60-10-0515
60-10-0600

22

9 1/4

2 1/4

6 1/2

60-10-0608

25

10

2 1/4

7

60-10-0700

30

10 1/2

2 3/8

7 1/2

60-10-0708

35

11 3/8

2 1/2

8

60-10-0800

45

12 1/8

2 7/8
