Rigid Split Journal Bearing - Gibbed Joint

Service requirements with side loading or angular pressures need bearings with a gibbed joint. These bearings enable loads to be accommodated to within 30° each side of the grease groove. They have all the features of the regular split bearings as well as the rigid style. These bearings are only available with bronze lining material.

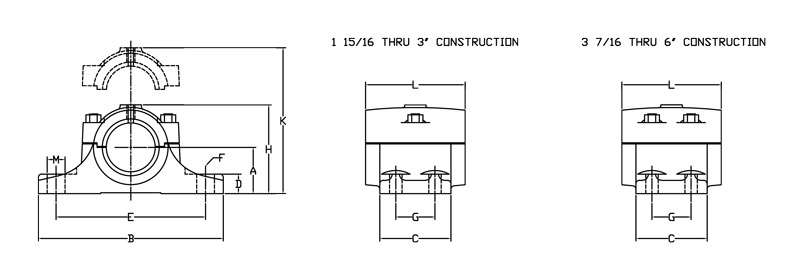

rigid split journal bearing gibbed joint diagram

4 Bolt Base - 2 Bolt Cap

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F-Dia.
Bolt

G

H

K

L

M

Pipe
Tap

Bronze
1 15/16
2
60-33-0115
60-33-0200

10

1 3/4

8 1/4

3 1/2

7/8

6 1/2

1/2

1 3/4

3 7/16

4 7/16

4

3/4

1/4

2 3/16
2 1/4
60-33-0203
60-33-0204

13

1 7/8

8 1/2

3 1/2

1

6 3/4

1/2

1 3/4

3 3/4

4 7/8

4 1/2

3/4

1/4

2 7/16
2 1/2
60-33-0207
60-33-0208

18

2 1/8

10 1/4

4

1 1/8

8

5/8

2

4 3/16

5 5/16

5

1

1/4

2 11/16
2 3/4
60-33-0211
60-33-0212

21

2 1/4

10 1/2

4 1/4

1 1/4

8 1/4

5/8

2 1/4

4 1/2

5 7/8

5 1/2

1

1/4

2 15/16
3
60-33-0215
60-33-0300

26

2 1/2

11

4 1/2

1 3/8

8 3/4

5/8

2 1/2

4 7/8

6 3/4

6

1

3/8

4 Bolt Base - 4 Bolt Cap

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F-Dia.
Bolt

G

H

K

L

M

Pipe
Tap

Bronze
3 7/16
3 1/2
60-33-0307
60-33-0308

43

3 1/4

13

5

1 3/8

10 1/2

3/4

2 3/4

6 1/4

8 1/8

7

1 1/4

1/2

3 15/16
4
60-33-0315
60-33-0400

62

3 1/2

14 3/4

5 1/2

1 1/2

12

3/4

3

6 13/16

9 3/8

8

1 3/8

1/2

4 7/16
4 1/2
60-33-0407
60-33-0408

86

4 1/8

16 1/2

6 1/4

1 3/4

13 1/2

7/8

3 1/2

7 7/8

10 3/8

9

1 1/2

1/2

4 15/16
5
60-33-0415
60-33-0500

116

4 1/2

18

7

1 7/8

15

7/8

4

8 9/16

11 1/4

10

1 5/8

1/2

5 7/16
5 1/2
60-33-0507
60-33-0508

166

5

19 1/4

7 3/4

2

15 3/4

1

4 1/2

9 3/8

12 1/4

11

1 3/4

1/2

5 15/16
6
60-33-0515
60-33-0600

198

5 1/2

20 1/2

8 1/2

2 1/8

16 1/2

1 1/8

5

10 1/4

13 3/4

12

1 7/8

1/2

Ryertex®, UHMW, Oilite® and other linings available. Price upon request. Sizes not listed will be priced upon request.
