R2000 Bearings - Piloted Flange

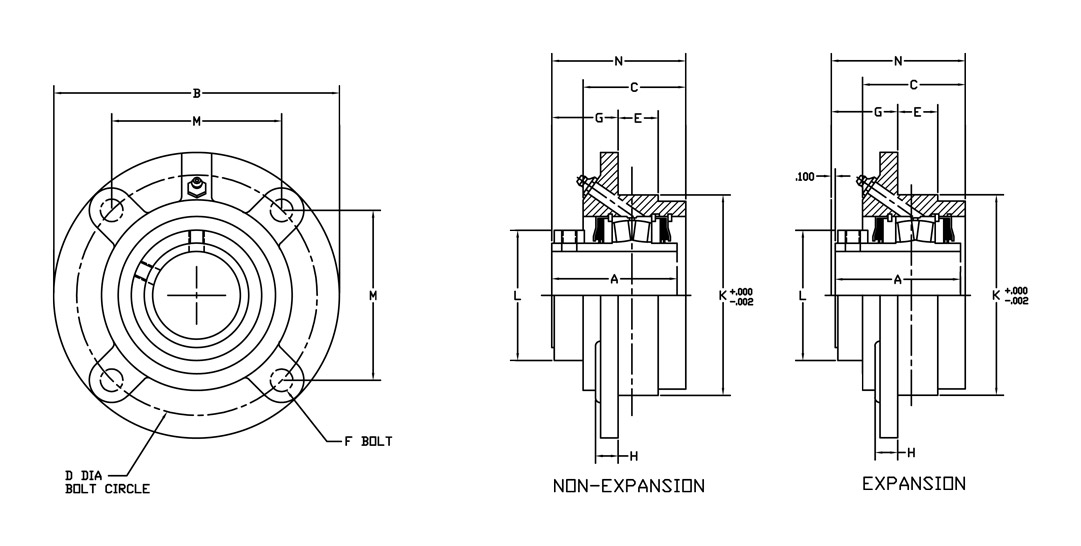

r2000 bearings piloted flange diagram


Shaft
Size

Part Number

Wt.

A

B

C

D

E

F Bolt

G

H

K

L

M

N

Non-Expansion Expansion
1 7/16
1 1/2
40-06-N107
40-06-N108
40-06-E107
40-06-E108

7.0

2 3/4

5 1/4

2 3/16

4 3/8

3/4

3/8

1 15/32

1/2

3.625

2 3/8

3 3/32

2 13/16

1 11/16
1 3/4
40-06-N111
40-06-N112
40-06-E111
40-06-E112

8.5

2 7/8

6 1/8

2 3/16

5 1/8

7/8

7/16

1 1/2

1/2

4.250

2 5/8

3 5/8

2 13/16

1 15/16
2
40-06-N115
40-06-N200
40-06-E115
40-06-E200

10.5

2 7/8

6 3/8

2 3/16

5 3/8

7/8

7/16

1 1/2

9/16

4.500

2 7/8

3 51/64

2 7/8

2 3/16

40-06-N203 40-06-E203

14.5

3 1/8

7 1/8

2 7/16

6

1

1/2

1 9/16

9/16

5.000

3 1/4

4 1/4

3 1/4

2 7/16
2 1/2
40-06-N207
40-06-N208
40-06-E207
40-06-E208

16.0

3 3/8

7 5/8

2 11/16

6 1/2

1

1/2

1 7/8

5/8

5.500

4

4 19/32

3 1/2

2 11/16
2 3/4
2 15/16
3
40-06-N211
40-06-N212
40-06-N215
40-06-N300
40-06-E211
40-06-E212
40-06-E215
40-06-E300

22.0

3 5/8

8 3/4

2 13/16

7 1/2

1 1/4

5/8

2

3/4

6.375

4 1/2

5 19/64

3 13/16

3 3/16
3 7/16
3 1/2
40-06-N303
40-06-N307
40-06-N308
40-06-E303
40-06-E307
40-06-E308

33.0

4 1/32

10 1/4

3 3/16

8 5/8

1 1/4

3/4

2 5/16

15/16

7.375

5 1/8

6 3/32

4 1/4

3 11/16
3 15/16
4
40-06-N311
40-06-N315
40-06-N400
40-06-E311
40-06-E315
40-06-E400

45.0

4 19/32

10 7/8

3 9/16

9 3/8

1 1/2

3/4

2 5/8

1 1/16

8.125

6

6 5/8

4 3/4
