Rigid 40° Angle Split Journal Bearings

These bearings are of the standard rigid split style with the exception of the cap being a 40° angle to the base rather than parallel. They incorporate the 120° loading range but accommodate applications where the base may not be parallel with the ground such as a conveyor drive mechanism.

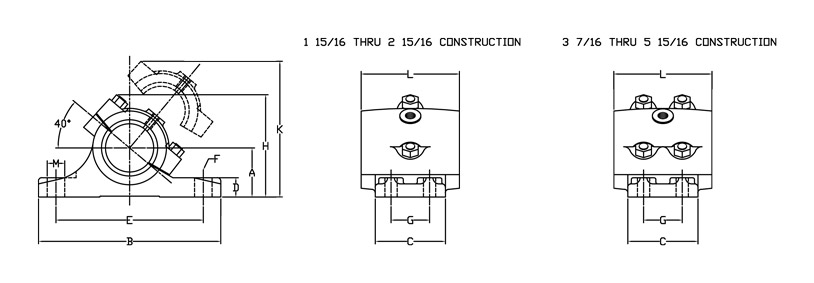

rigid 40 degree angle split journal bearing diagram

4 Bolt Base - 2 Bolt Cap

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F-Dia.
Bolt

G

H

K

L

M

Pipe
Tap

Babbitt

Bronze

1 15/16

60-05-0115

60-25-0115

11

2 1/4

8 1/4

3 1/2

7/8

6 1/2

1/2

1 3/4

4 1/2

5 1/4

4

3/4

1/4

2 3/16

60-05-0203

60-25-0203

14

2 1/2

8 1/2

3 1/2

1

6 3/4

1/2

1 3/4

4 7/8

5 3/4

4 1/2

3/4

1/4

2 7/16

60-05-0207

60-25-0207

16

2 3/4

10 1/4

4

1 1/8

8

5/8

2

5 5/16

6 1/8

5

1

1/4

2 11/16

60-05-0211

60-25-0211

28

3

10 1/2

4 1/4

1 1/4

8 1/4

5/8

2 1/4

6

7

5 1/2

1

1/4

2 15/16

60-05-0215

60-25-0215

30

3 1/4

11

4 1/2

1 3/8

8 3/4

5/8

2 1/2

6 3/8

7 1/2

6

1

3/8

4 Bolt Base - 4 Bolt Cap

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F-Dia.
Bolt

G

H

K

L

M

Pipe
Tap

Babbitt

Bronze

3 7/16

60-05-0307

60-25-0307

42

3 1/2

13

5

1 1/2

10 1/2

3/4

2 3/4

7 1/8

9

7

1 1/4

1/2

3 15/16

60-05-0315

60-25-0315

60

3 3/4

14 3/4

5 1/2

1 5/8

12

3/4

3

8 1/4

10 1/4

8

1 3/8

1/2

4 7/16

60-05-0407

60-25-0407

86

4 1/8

16 1/2

6 1/4

1 3/4

13 1/2

7/8

3 1/2

8 7/8

11

9

1 1/2

1/2

4 15/16

60-05-0415

60-25-0415

120

4 1/2

18

7

1 7/8

15

7/8

4

9 3/4

12

10

1 5/8

1/2

5 7/16

60-05-0507

60-25-0507

163

5

19 3/4

8

2

15 3/4

1

4 1/2

10 13/16

13 1/2

11

1 7/8

1/2

5 15/16

60-05-0515

60-25-0515

191

5 1/2

20 1/2

8 1/2

2 1/8

16 1/2

1 1/8

5

11 5/16

14 5/8

12

1 7/8

1/2

Ryertex®, UHMW, Oilite® and other linings available. Price upon request. Sizes not listed will be priced upon request.
