Rigid Split Journal Bearings



This style has all the features of the regular split type and also accommodates the larger shaft sizes. Housings are larger for greater strength. Four-bolt bases in the smaller sizes and the addition of a four-bolt cap design for the larger sizes are especially useful for rugged applications demanding more rigidity.

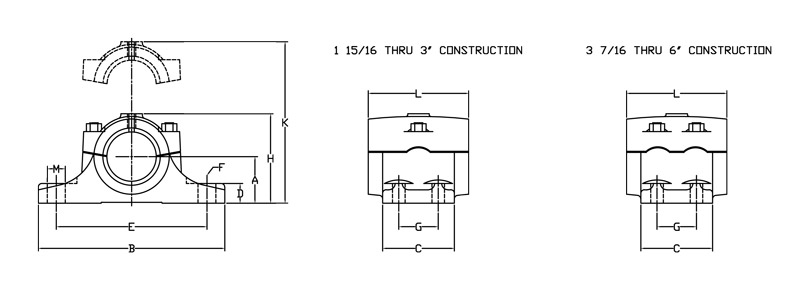

rigid split journal bearing diagram

4 Bolt Base - 2 Bolt Cap

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F-Dia.
Bolt

G

H

K

L

M

Pipe
Tap

Babbitt

Bronze

1 15/16
2
60-03-0115
60-03-0200
60-23-0115
60-23-0200

10

1 3/4

8 1/4

3 1/2

7/8

6 1/2

1/2

1 3/4

3 7/16

4 7/16

4

3/4

1/4

2 3/16
2 1/4
60-03-0203
60-03-0204
60-23-0203
60-23-0204

13

1 7/8

8 1/2

3 1/2

1

6 3/4

1/2

1 3/4

3 3/4

4 7/8

4 1/2

3/4

1/4

2 7/16
2 1/2
60-03-0207
60-03-0208
60-23-0207
60-23-0208

18

2 1/8

10 1/4

4

1 1/8

8

5/8

2

4 3/16

5 5/16

5

1

1/4

2 11/16
2 3/4
60-03-0211
60-03-0212
60-23-0211
60-23-0212

21

2 1/4

10 1/2

4 1/4

1 1/4

8 1/4

5/8

2 1/4

4 1/2

5 7/8

5 1/2

1

1/4

2 15/16
3
60-03-0215
60-03-0300
60-23-0215
60-23-0300

26

2 1/2

11

4 1/2

1 3/8

8 3/4

5/8

2 1/2

4 7/8

6 3/4

6

1

3/8

4 Bolt Base - 4 Bolt Cap

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F-Dia.
Bolt

G

H

K

L

M

Pipe
Tap

Babbitt

Bronze

3 7/16
3 1/2
60-03-0307
60-03-0308
60-23-0307
60-23-0308

43

3 1/4

13

5

1 3/8

10 1/2

3/4

2 3/4

6 1/4

8 1/8

7

1 1/4

1/2

3 15/16
4
60-03-0315
60-03-0400
60-23-0315
60-23-0400

62

3 1/2

14 3/4

5 1/2

1 1/2

12

3/4

3

6 13/16

9 3/8

8

1 3/8

1/2

4 7/16
4 1/2
60-03-0407
60-03-0408
60-23-0407
60-23-0408

86

4 1/8

16 1/2

6 1/4

1 3/4

13 1/2

7/8

3 1/2

7 7/8

10 3/8

9

1 1/2

1/2

4 15/16
5
60-03-0415
60-03-0500
60-23-0415
60-23-0500

116

4 1/2

18

7

1 7/8

15

7/8

4

8 9/16

11 1/4

10

1 5/8

1/2

5 7/16
5 1/2
60-03-0507
60-03-0508
60-23-0507
60-23-0508

166

5

19 1/4

7 3/4

2

15 3/4

1

4 1/2

9 3/8

12 1/4

11

1 3/4

1/2

5 15/16
6
60-03-0515
60-03-0600
60-23-0515
60-23-0600

198

5 1/2

20 1/2

8 1/2

2 1/8

16 1/2

1 1/8

5

10 1/4

13 3/4

12

1 7/8

1/2

Ryertex®, UHMW, Oilite® and other linings available - price upon request. Sizes not listed will be priced upon request.

Check your selection of journal bearings »
