R2000 Bearings - 2 Bolt Pillow Block

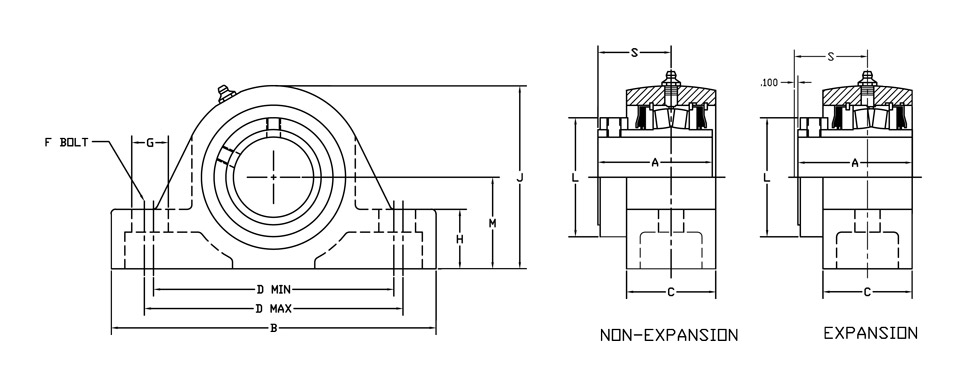

r2000 bearings 2 bolt pillow block diagram

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F Bolt

G

H

J

L

M

S

Non-Expansion Expansion Min Max
1 7/16
1 1/2
40-02-N107
40-02-N108
40-02-E107
40-02-E108

7.0

2 3/4

6 7/8

2 3/16

4 11/16

5 5/16

---

1/2

7/8

1 3/16

3 7/8

2 3/8

1 7/8

1 3/4

1 11/16
1 3/4
40-02-N111
40-02-N112
40-02-E111
40-02-E112

8.1

2 7/8

7 3/8

2 3/16

5 3/16

5 13/16

---

1/2

7/8

1 5/16

4 1/4

2 5/8

2 1/8

1 7/8

1 15/16
2
40-02-N115
40-02-N200
40-02-E115
40-02-E200

10.0

2 7/8

8 3/8

2 3/16

6

6 1/2

---

5/8

15/16

1 3/8

4 9/16

2 7/8

2 1/4

1 7/8

2 3/16

40-02-N203 40-02-E203

12.0

3 1/8

8 7/8

2 7/16

6 7/16

7 1/16

---

5/8

1

1 5/8

5

3 1/4

2 1/2

2

2 7/16
2 1/2
40-02-N207
40-02-N208
40-02-E207
40-02-E208

18.1

3 3/8

9 1/4

2 11/16

6 13/16

7 7/16

---

5/8

1

1 3/4

5 11/16

4

2 3/4

2 1/8

2 11/16
2 3/4
2 15/16
3
40-02-N211
40-02-N212
40-02-N215
40-02-N300
40-02-E211
40-02-E212
40-02-E215
40-02-E300

23.2

3 5/8

10 7/16

2 13/16

7 13/16

8 7/16

---

3/4

1 3/16

2

6 7/16

4 1/2

3 1/4

2 3/8

3 3/16
3 7/16
3 1/2
40-02-N303
40-02-N307
40-02-N308
40-02-E303
40-02-E307
40-02-E308

33.7

4 1/32

13

3 3/16

9 3/16

10 13/16

---

7/8

1 3/4

2 1/4

7 1/2

5 1/8

3 3/4

2 19/32

3 11/16
3 15/16
4
40-02-N311
40-02-N315
40-02-N400
40-02-E311
40-02-E315
40-02-E400

55.6

4 19/32

14 1/4

3 9/16

10

11 3/4

---

1

2

2 1/2

8 7/16

6

4 1/8

2 31/32
