R2000 Bearings - 4 Bolt Pillow Block

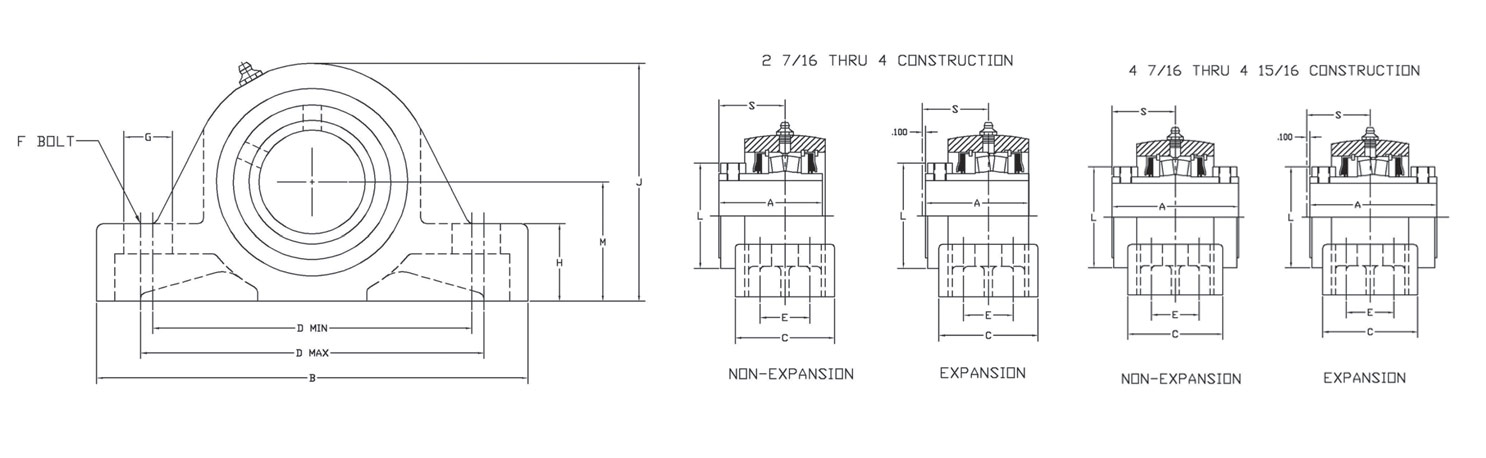

r2000 bearings 4 bolt pillow block diagram

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F
Bolt

G

H

J

L

M

S

Non-Expansion Expansion Min Max
2 7/16
2 1/2
40-04-N207
40-04-N208
40-04-E207
40-04-E208

18.7

3 3/8

9 1/4

3 1/4

6 7/8

7 5/8

1 3/4

1/2

1

1 3/4

5 11/16

4

2 3/4

2 1/8

2 11/16
2 3/4
2 15/16
3
40-04-N211
40-04-N212
40-04-N215
40-04-N300
40-04-E211
40-04-E212
40-04-E215
40-04-E300

25.6

3 5/8

10 7/16

3 3/4

7 7/8

8 3/8

1 7/8

5/8

1

2

6 7/16

4 1/2

3 1/4

2 3/8

3 3/16
3 7/16
3 1/2
40-04-N303
40-04-N307
40-04-N308
40-04-E303
40-04-E307
40-04-E308

36.7

4 1/32

13

3 7/8

9 1/4

10 3/4

2

3/4

1 1/2

2 1/4

7 1/2

5 1/8

3 3/4

2 19/32

3 11/16
3 15/16
4
40-04-N311
40-04-N315
40-04-N400
40-04-E311
40-04-E315
40-04-E400

57.0

4 19/32

15 1/4

4 1/2

11

13

2 1/4

3/4

1 7/8

2 1/2

8 7/16

6

4 1/4

2 31/32

4 7/16
4 1/2
40-04-N407
40-04-N408
40-04-E407
40-04-E408

67.6

6 1/8

16 5/8

4 5/8

13

14

2 1/2

3/4

1 3/8

2 3/4

9 3/8

6 1/8

4 3/4

3 1/16

4 15/16
5
40-04-N415
40-04-N500
40-04-E415
40-04-E500

100.0

6 5/8

18 1/2

5 1/8

15

16

2 3/4

7/8

1 1/2

3

10 7/8

6 7/8

5 1/2

3 5/16
