Rigid Sleeve Couplings (Steel)

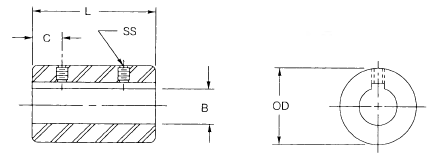

rigid sleeve couplings steel diagram

Part
Number

OD

L

B

C

Set
Screw

Keyway
Size

60-13-0004

.50

.75

.25

.19

8 - 32 x 1/8

None

60-13-0005

.63

1.00

.31

.25

8 - 32 x 1/8

None

60-13-0006

.75

1.00

.37

.25

10 - 24 x 1/8

None

60-13-0008

1.00

1.50

.50

.38

1/4 - 20 x 1/4

1/8 x 1/16

60-13-0010

1.25

2.00

.62

.50

5/16 - 18 x 5/16

3/16 x 3/32

60-13-0012

1.50

2.00

.75

.50

5/16 - 18 x 3/8

3/16 x 3/32

60-13-0014

1.75

2.00

.87

.50

5/16 - 18 x 3/8

3/16 x 3/32

60-13-0100

2.00

3.00

1.00

.75

3/8 - 16 x 1/2

1/4 x 1/8

60-13-0102

2.13

3.00

1.12

.75

3/8 - 16 x 1/2

1/4 x 1/8

60-13-0104

2.25

4.00

1.25

1.00

3/8 - 16 x 1/2

1/4 x 1/8

60-13-0106

2.50

4.50

1.37

1.00

3/8 - 16 x 1/2

5/16 x 5/32
