Split Cast Iron Shaft Collars

Split cast iron collars are used when the removable feature is desirable. They are available from 1" shaft size to 8". Their dimensions are the largest of the three types. Some clamping action is present due to the split style, but the primary positioning force is the socket head set screw.

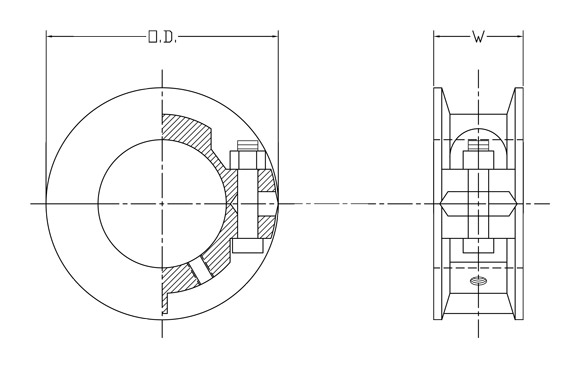

split cast iron shaft collar diagram

Shaft
Size

Part
Number

Weight

Outside
Diameter

Width

1

60-11-0100

1

2 11/16

1 1/16

1 3/16
1 1/4
60-11-0103
60-11-0104

1 1/4

3 1/8

1 1/4

1 5/16
1 7/16
1 1/2
60-11-0105
60-11-0107
60-11-0108

1 1/2

4 1/16

1 7/16

1 11/16
1 3/4
60-11-0111
60-11-0112

2 1/4

3 3/4

1 9/16

1 7/8
1 15/16
2
60-11-0114
60-11-0115
60-11-0200

2 3/4

4 1/16

1 3/4

2 3/16
2 1/4
60-11-0203
60-11-0204

3

4 1/2

1 7/8

2 7/16
2 1/2
60-11-0207
60-11-0208

4

4 7/8

2

2 11/16
2 3/4
60-11-0211
60-11-0212

5

5 5/16

2 1/16

2 15/16
3
60-11-0215
60-11-0300

5 3/4

5 5/8

2 5/16

3 3/16
3 1/4
60-11-0303
60-11-0304

8 1/2

6 1/16

2 3/8

3 7/16
3 1/2
60-11-0307
60-11-0308

9 3/4

6 7/8

2 9/16

3 11/16

60-11-0311

10

6 13/16

2 5/8

3 15/16
4
60-11-0315
60-11-0400

11

7 3/16

2 3/4

4 3/16

60-11-0403

15 3/4

7 3/4

3

4 7/16
4 1/2
60-11-0407
60-11-0408

16 1/2

8 1/8

3 5/16

4 15/16
5
60-11-0415
60-11-0500

20 1/2

8 3/4

3 1/2

5 7/16

60-11-0507

28

9 5/8

3 3/4

5 15/16
6
60-11-0515
60-11-0600

30

10 1/8

4 1/16

6 1/2

60-11-0608

41

11

4 1/4

7

60-11-0700

46

12

4 1/2

7 1/2

60-11-0708

56

12 15/16

4 11/16

8

60-11-0800

69

13 5/8

5 1/16

Sizes not listed - Metric Bores - Made to Order - Price upon request.
