Rigid Clamp Couplings



Clamp couplings are used when ease of installation and removal is advantageous. Pulleys and bearings do not need to be removed for replacement. The coupling is bored with shims in place which are removed for installation enabling a clamp fit on the shaft over a straight key.

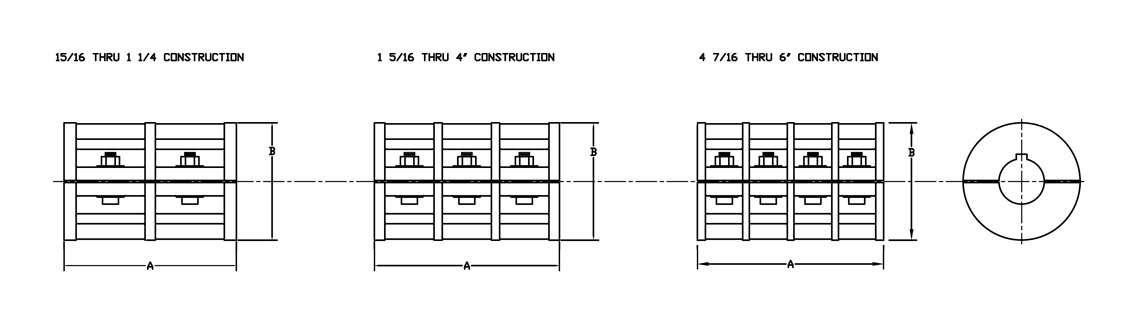

rigid clamp coupling diagram

Shaft
Size

Part Number

Weight

A

B

Keyway

Bolts

No.

Size

15/16
1
60-08-0015
60-08-0100

9

5 3/8

4

1/4

4

1/2

1 1/8
1 3/16
1 1/4
60-08-0102
60-08-0103
60-08-0104

12

6 1/4

4 1/4

1/4

4

1/2

1 5/16
1 3/8
1 7/16
1 1/2
60-08-0105
60-08-0106
60-08-0107
60-08-0108

15 1/2

7 1/8

4 1/2

3/8

6

1/2

1 5/8
1 11/16
1 3/4
60-08-0110
60-08-0111
60-08-0112

24

8 1/4

5 1/8

3/8

6

5/8

1 7/8
1 15/16
2
60-08-0114
60-08-0115
60-08-0200

29

8 5/8

5 1/2

1/2

6

5/8

2 1/8
2 3/16
2 1/4
60-08-0202
60-08-0203
60-08-0204

32

9 5/16

5 3/4

1/2

6

3/4

2 3/8
2 7/16
2 1/2
60-08-0206
60-08-0207
60-08-0208

41 1/2

9 7/8

6 1/4

5/8

6

3/4

2 5/8
2 11/16
2 3/4
60-08-0210
60-08-0211
60-08-0212

51

10 7/8

7 1/4

5/8

6

3/4

2 7/8
2 15/16
3
60-08-0214
60-08-0215
60-08-0300

63

12

7 1/4

3/4

6

7/8

3 3/16
3 1/4
60-08-0303
60-08-0304

72

12 7/8

7 7/8

3/4

6

7/8

3 7/16
3 1/2
60-08-0307
60-08-0308

80

13 1/2

8

7/8

6

7/8

3 11/16
3 3/4
60-08-0311
60-08-0312

136

14 1/2

9 1/2

7/8

6

7/8

3 15/16
4
60-08-0315
60-08-0400

166

15 1/2

10 1/4

1

6

1

4 7/16
4 1/2
60-08-0407
60-08-0408

234

17 1/2

11

1

8

1

4 15/16
5
60-08-0415
60-08-0500

294

18 3/8

11 3/4

1 1/4

8

1 1/8

5 7/16
5 1/2
60-08-0507
60-08-0508

399

19 1/4

14 1/4

1 1/4

8

1 1/4

5 15/16
6
60-08-0515
60-08-0600

578

20

16

1 1/2

8

1 3/8

Sizes not listed - Reducers - Special Keyways - Metric Bores - Ductile Iron or Steel - Made to order - Priced upon request.
