R2000 Bearings - Wide Slot Take-Up

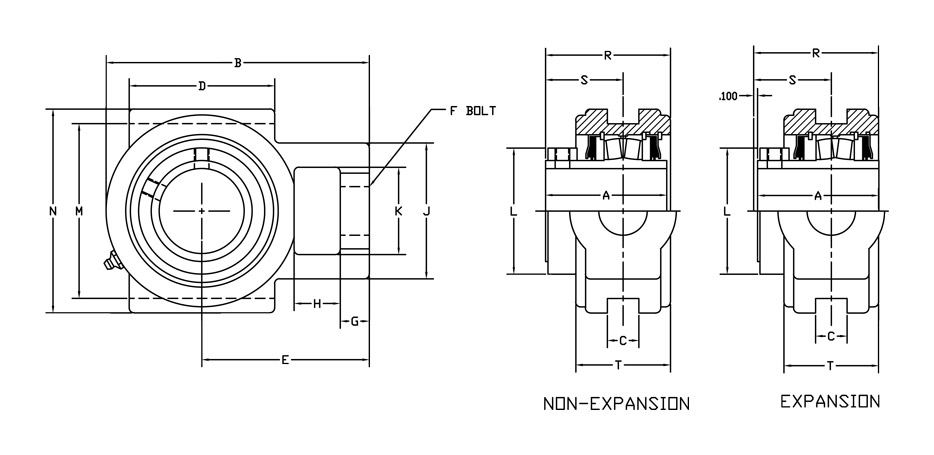

r2000 bearing wide slot take-up diagram


Shaft
Size

Part Number

Wt.

A

B

C

D

E

F Bolt

G

H

J

K

L

M

N

R

S

T

Non-Expansion Expansion
1 7/16
1 1/2
40-07-N107
40-07-N108
40-07-E107
40-07-E108

7.0

2 3/4

5 3/8

17/32

3

3 7/16

3/4

5/8

1 1/16

2 7/16

1 7/16

2 3/8

3 1/2

4 1/8

2 27/32

1 3/4

2 3/16

1 11/16
1 3/4
40-07-N111
40-07-N112
40-07-E111
40-07-E112

9.2

2 7/8

6

11/16

3 3/8

3 13/16

1

3/4

1 1/16

2 7/8

1 15/16

2 5/8

4

4 3/4

2 31/32

1 7/8

2 3/16

1 15/16
2
40-07-N115
40-07-N200
40-07-E115
40-07-E200

14.0

2 7/8

6 1/8

11/16

3 1/2

3 15/16

1

3/4

1 1/16

2 7/8

1 15/16

2 7/8

4

4 3/4

2 31/32

1 7/8

2 3/16

2 3/16

40-07-N203 40-07-E203

18.0

3 1/8

6 25/32

13/16

3 3/4

4 5/16

1 1/8

3/4

1 3/16

3 1/2

2 1/4

3 1/4

4 1/2

5 1/4

3 7/32

2

2 7/16

2 7/16
2 1/2
40-07-N207
40-07-N208
40-07-E207
40-07-E208

24.0

3 3/8

7 3/4

1 1/16

4 3/4

4 15/16

1 1/4

7/8

1 5/16

3 3/4

2 1/2

4

5 1/8

5 7/8

3 15/32

2 1/8

2 11/16

2 11/16
2 3/4
2 15/16
3
40-07-N211
40-07-N212
40-07-N215
40-07-N300
40-07-E211
40-07-E212
40-07-E215
40-07-E300

30.5

3 5/8

8 13/16

1 13/16

4 3/4

5 9/16

1 1/2

1

1 9/16

4 1/4

2 3/4

4 1/2

5 15/16

6 3/4

3 25/32

2 3/8

2 13/16

3 3/16
3 7/16
3 1/2
40-07-N303
40-07-N307
40-07-N308
40-07-E303
40-07-E307
40-07-E308

37.0

4 1/32

10 1/8

1 13/16

6 1/4

6 7/16

1 3/4

1

1 13/16

4 7/8

2 7/8

5 1/8

6 13/16

7 5/8

4 3/16

2 19/32

3 3/16

3 11/16
3 15/16
4
40-07-N311
40-07-N315
40-07-N400
40-07-E311
40-07-E315
40-07-E400

47.3

4 19/32

11 15/16

2 1/16

7

7 3/8

2

1 1/8

2 1/8

5 5/8

3 3/8

6

8 5/8

9 7/16

4 3/4

2 31/32

3 9/16
