Solid Steel Shaft Collars



Solid steel collars are made from cold-rolled steel and available in sizes up to 3". They are smaller than iron collars and are used when space and appearance are important.

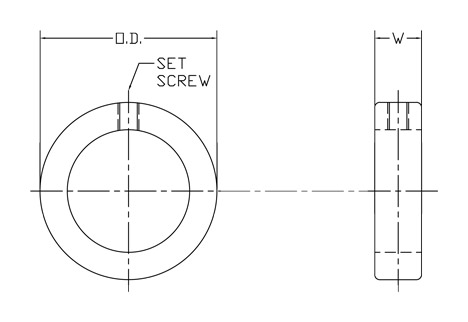

solid steel shaft collar diagram

Shaft Size

Part Number

Weight Ounces

Outside Diameter

Width

Set Screw

3/16

60-12-0003

1/4

7/16

1/4

#8

1/4

60-12-0004

1/4

1/2

9/32

#10

5/16

60-12-0005

1/2

5/8

11/32

#10

3/8

60-12-0006

1/2

3/4

3/8

1/4

7/16

60-12-0007

1

7/8

9/16

1/4

1/2
9/16
60-12-0008
60-12-0009
1 1/8
1 1/8

1

7/16

1/4

5/8

60-12-0010

1 1/2

1 1/8

1/2

5/16

11/16
3/4
60-12-0011
60-12-0012
2
2

1 1/4

9/16

5/16

13/16

60-12-0013

2

1 5/16

9/16

5/16

7/8

60-12-0014

2 1/2

1 1/2

9/16

5/16

15/16

60-12-0015

3 1/4

1 5/8

9/16

5/16

1

60-12-0100

4

1 5/8

5/8

5/16

1 1/16
1 1/8
60-12-0101
60-12-0102
4 1/4
3 3/4

1 3/4

5/8

5/16

1 3/16
1 1/4
60-12-0103
60-12-0104
5 3/4
5 3/4

2

11/16

3/8

1 5/16

60-12-0105

6 1/2

2 1/8

11/16

3/8

1 3/8

60-12-0106

6 1/2

2 1/8

3/4

3/8

1 7/16
1 1/2
60-12-0107
60-12-0108
7 3/4
7 1/2

2 1/4

3/4

3/8

1 9/16
1 5/8
1 11/16
60-12-0109
60-12-0110
60-12-0111
10 3/4
10
9 1/4

2 1/2

13/16

3/8

1 3/4
1 13/16
1 7/8
60-12-0112
60-12-0113
60-12-0114
13 1/2
13
12 1/4

2 3/4

7/8

1/2

1 15/16
2
2 1/8
60-12-0115
60-12-0200
60-12-0202
16 1/4
16
16

3

7/8

1/2

2 3/16
2 1/4
2 5/16
2 3/8
60-12-0203
60-12-0204
60-12-0205
60-12-0206
18 1/2
17 1/2
17 1/4
17

3 1/4

15/16

1/2

2 7/16
2 1/2
60-12-0207
60-12-0208
21 3/4
20 3/4

3 1/2

1

1/2

2 9/16

60-12-0209

30

3 3/4

1 1/8

1/2

2 11/16
2 3/4
60-12-0211
60-12-0212
35
34

4

1 1/8

1/2

2 15/16
3
60-12-0215
60-12-0300
38
36

4 1/4

1 1/8

1/2
