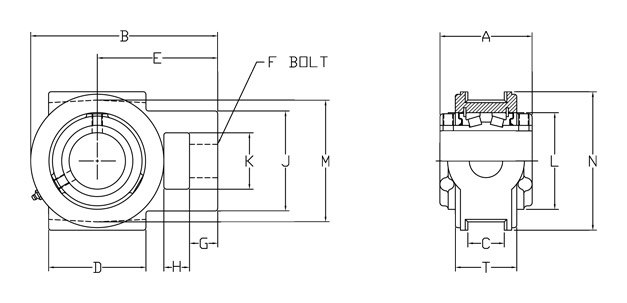

"Type E" Wide Slot Take Up Bearings
"Type E" Wide Slot Take Up Bearings are designed for use in standard Center Pull Take-Up Frames or similar applications. These units have wide cast ways for supporting guides and are suitable for either horizontal or vertical applications.
Shaft
Size |
Part
Number
|
Wt. |
A |
B |
C |
D |
E |
F
Screw |
G |
H |
J |
K |
L |
M |
N |
T |
|
|
7.5 |
3 |
5 3/32 |
17/32 |
2 3/4 |
3 7/32 |
3/4 |
11/16 |
5/8 |
2 7/16 |
1 7/16 |
2 3/4 |
3 1/2 |
4 1/8 |
2 1/16 |
|
20-07-0108 |
20-07-0110
|
20-07-0111
|
|
11.8 |
3 3/8 |
6 |
21/32 |
3 1/4 |
3 13/16 |
1 |
15/16 |
3/4 |
3 5/16 |
1 15/16 |
3 5/16 |
4 |
4 3/4 |
2 5/16 |
|
20-07-0112 |
20-07-0114
|
20-07-0115
|
20-07-0200
|
|
13 |
3 1/2 |
6 5/16 |
21/32 |
3 3/4 |
3 15/16 |
1 |
15/16 |
3/4 |
3 5/16 |
1 15/16 |
3 7/16 |
4 |
4 3/4 |
2 7/16 |
2 3/16 |
20-07-0203 |
16 |
3 3/4 |
7 1/8 |
25/32 |
3 3/4 |
4 5/8 |
1 1/8 |
1 |
1 |
3 7/8 |
2 1/4 |
3 3/4 |
4 1/2 |
5 1/4 |
2 9/16 |
|
20-07-0204 |
20-07-0207
|
20-07-0208
|
|
22 |
4 |
7 13/16 |
1 1/32 |
4 1/2 |
5 1/16 |
1 1/2 |
1 1/16 |
1 1/4 |
4 1/4 |
2 1/2 |
4 1/16 |
5 1/8 |
6 |
2 3/4 |
|
20-07-0211 |
20-07-0212
|
20-07-0215
|
20-07-0300
|
|
29 |
4 1/2 |
9 1/8 |
1 25/32 |
4 3/4 |
5 7/8 |
1 1/2 |
1 3/8 |
1 1/4 |
4 7/8 |
2 3/4 |
4 23/32 |
5 15/16 |
6 3/4 |
3 |
Gray iron housing furnished unless otherwise specified.
