Split Journal Bearings

Split bearings are recommended for application where it is necessary to remove a cap for servicing or replacing a bearing. This style eliminates removing pulleys and couplings from the shaft when replacement is required. Loading range is limited to 30° below the joint. The angular parting of the cap is provided with shims to compensate for wear and adjustments.

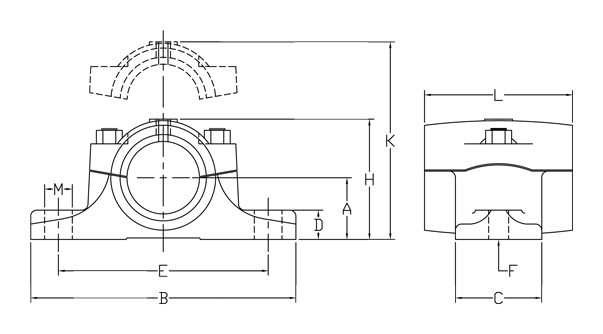

split journal bearing diagram

Shaft
Size

Part Number

Wt.

A

B

C

D

E

F-Dia.
Bolt

H

K

L

M

Pipe
Tap

Babbitt

Bronze

1/2

60-02-0008

----

0.7

3/4

3 3/4

1

3/8

2 7/8

5/16

1 1/2

2 1/8

1 3/8

1/2

1/8
5/8
11/16
3/4
60-02-0010
60-02-0011
60-02-0012
----
----
----

1.2

7/8

4 1/4

1 1/8

1/2

3 1/4

5/16

1 3/4

2 1/2

1 5/8

1/2

1/8
7/8
15/16
1
60-02-0014
60-02-0015
60-02-0100
----
60-22-0015
60-22-0100

1.9

1

4 3/4

1 3/8

9/16

3 5/8

3/8

2 1/16

3

2

9/16

1/8
1 1/16
1 1/8
1 3/16
1 1/4
60-02-0101
60-02-0102
60-02-0103
60-02-0104
60-22-0101
60-22-0102
60-22-0103
60-22-0104

3.0

1 1/4

5 1/4

1 5/8

5/8

4 1/8

3/8

2 7/16

3 1/2

2 1/2

5/8

1/8
1 5/16
1 3/8
1 7/16
1 1/2
60-02-0105
60-02-0106
60-02-0107
60-02-0108
60-22-0105
60-22-0106
60-22-0107
60-22-0108

4.0

1 3/8

6 1/4

2

3/4

4 7/8

1/2

2 11/16

3 7/8

3

11/16

1/8
1 5/8
1 11/16
1 3/4
60-02-0110
60-02-0111
60-02-0112
60-22-0110
60-22-0111
60-22-0112

6.0

1 1/2

6 3/4

2 1/4

13/16

5 1/4

1/2

3

4 3/8

3 1/2

3/4

1/4
1 7/8
1 15/16
2
60-02-0114
60-02-0115
60-02-0200
60-22-0114
60-22-0115
60-22-0200

8.0

1 3/4

7 1/2

2 1/2

7/8

6

5/8

3 7/16

4 7/8

4

13/16

1/4
2 1/8
2 3/16
2 1/4
60-02-0202
60-02-0203
60-02-0204
60-22-0202
60-22-0203
60-22-0204

12.0

1 7/8

8 1/2

2 3/4

1

6 1/2

5/8

3 3/4

5 1/4

4 1/2

1

1/4
2 3/8
2 7/16
2 1/2
60-02-0206
60-02-0207
60-02-0208
60-22-0206
60-22-0207
60-22-0208

15.0

2 1/8

8 7/8

3

1 1/8

7

5/8

4 3/16

5 3/4

5

1

1/4
2 5/8
2 11/16
2 3/4
60-02-0210
60-02-0211
60-02-0212
60-22-0210
60-22-0211
60-22-0212

18.5

2 1/4

10

3 1/4

1 3/16

7 3/4

3/4

4 1/2

6 3/8

5 1/2

1 1/8

1/4
2 15/16
3
60-02-0215
60-02-0300
60-22-0215
60-22-0300

22.5

2 1/2

10 3/4

3 1/2

1 3/16

8 1/2

3/4

4 7/8

6 3/4

6

1 1/8

3/8
3 7/16
3 1/2
60-02-0307
60-02-0308
60-22-0307
60-22-0308

35.0

2 7/8

12

4

1 1/2

9 1/4

7/8

5 5/8

7 5/8

7

1 3/8

1/2
3 15/16
4
60-02-0315
60-02-0400
60-22-0315
60-22-0400

46.0

3 1/8

13 1/2

4 1/2

1 5/8

10 1/2

1

6 3/16

8 1/2

8

1 1/2

 1/2

Ryertex®, UHMW, Oilite® and other linings available. Price upon request. Sizes not listed will be priced upon request.
