Rigid Jaw Clutch Couplings
These couplings are used to positively connect and disconnect rotating shafts where engagement and disengagement is not frequent. Couplings are machined all over to ensure precise engagement.
Square jaws are used where engagement and disengagement under power or in motion is not required. They transmit power in both directions. Spiral jaw couplings are made in right or left hand style and will transmit power in only one direction. They can be engaged or disengaged at low speeds. Sprocket attachments are available to function as a chain drive. A shifting lever mechanism is available at additional cost. All Jaw Clutch Couplings and Lever Assemblies are made to order.
|
Shaft |
Part Number |
Wt. |
A |
B |
C |
D |
E |
H |
J |
K |
L |
N |
S |
Keyway |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Square Jaw |
Spiral Jaw |
||||||||||||||
| 1 7/16 | 60-15-0107 | 60-16-0107 | 16.0 | 8 1/2 | 4 | 4 | 7/8 | 1 1/2 | 3 3/8 | 7/8 | 5/8 | 3 1/8 | 4 3/4 | 2 1/2 | 3/8 |
| 1 11/16 | 60-15-0111 | 60-16-0111 | 21.2 | 9 1/4 | 4 1/2 | 4 3/8 | 7/8 | 1 3/4 | 3 11/16 | 1 | 5/8 | 3 1/2 | 5 1/8 | 2 7/8 | 3/8 |
| 1 15/16 | 60-15-0115 | 60-16-0115 | 22.5 | 9 3/8 | 5 1/8 | 4 7/16 | 1 | 2 | 4 | 1 | 5/8 | 3 7/16 | 5 3/16 | 2 13/16 | 1/2 |
| 2 3/16 | 60-15-0203 | 60-16-0203 | 31.2 | 9 3/4 | 5 1/2 | 4 5/8 | 1 | 2 1/4 | 4 3/8 | 1 | 3/4 | 3 5/8 | 5 3/8 | 2 7/8 | 1/2 |
| 2 7/16 | 60-15-0207 | 60-16-0207 | 35.9 | 10 | 6 | 4 3/4 | 1 | 2 1/2 | 4 5/8 | 1 | 1 | 3 3/4 | 5 9/16 | 2 3/4 | 5/8 |
| 2 15/16 | 60-15-0215 | 60-16-0215 | 47.1 | 10 1/2 | 7 | 5 | 1 | 3 | 5 1/8 | 1 | 1 1/4 | 4 | 5 7/8 | 2 3/4 | 3/4 |
| 3 7/16 | 60-15-0307 | 60-16-0307 | 71.6 | 11 3/4 | 8 1/4 | 5 5/8 | 1 | 3 1/2 | 6 | 1 1/4 | 1 1/2 | 4 5/8 | 6 5/8 | 3 1/8 | 7/8 |
| 3 15/16 | 60-15-0315 | 60-16-0315 | 103.0 | 14 1/2 | 9 1/2 | 7 | 1 1/8 | 4 | 7 | 1 1/4 | 1 3/4 | 5 7/8 | 8 | 4 1/8 | 1 |
| 4 7/16 | 60-15-0407 | 60-16-0407 | 156.0 | 21 | 11 | 7 | 1 1/8 | 4 1/2 | 7 1/2 | 1 1/2 | 2 | 5 7/8 | 8 | 3 7/8 | 1 |
| 4 15/16 | 60-15-0415 | 60-16-0415 | 223.0 | 22 1/4 | 11 | 10 7/8 | 1 3/8 | 5 | 8 1/4 | 1 1/2 | 2 | 9 1/2 | 11 3/4 | 7 1/2 | 1 1/4 |
| 5 7/16 | 60-15-0507 | 60-16-0507 | 264.0 | 24 | 12 | 11 3/4 | 1 1/2 | 5 1/2 | 8 3/4 | 2 | 2 1/2 | 10 1/4 | 12 7/8 | 7 3/4 | 1 1/4 |
| 5 15/16 | 60-15-0515 | 60-16-0515 | 314.0 | 25 | 13 | 12 1/4 | 1 1/2 | 6 | 9 1/4 | 2 | 2 1/2 | 10 3/4 | 13 1/2 | 8 1/4 | 1 1/2 |
Sprocket attachments - Sizes not listed - Reducers - Metric Bores - Special Keyways - Ductile Iron or Steel clutches - Bronze Pilot Bushings - Available on special order - Price upon request.

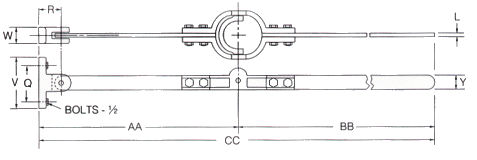

Lever Assemblies
| Shaft Size | Part Number | AA | BB | CC | L | Q | R | V | W | Y |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 7/16 | 60-17-0107 | 22 | 38 1/4 | 60 1/4 | 3/8 | 4 | 2 1/2 | 6 | 1 7/8 | 1 1/2 |
| 1 11/16 | 60-17-0111 | 22 1/4 | 38 1/2 | 60 3/4 | 3/8 | 4 | 2 1/2 | 6 | 1 7/8 | 1 1/2 |
| 1 15/16 | 60-17-0115 | 22 1/4 | 38 1/2 | 60 3/4 | 3/8 | 4 | 2 1/2 | 6 | 1 7/8 | 1 1/2 |
| 2 3/16 | 60-17-0203 | 23 | 39 | 62 | 3/8 | 4 | 2 1/2 | 6 | 1 7/8 | 1 1/2 |
| 2 7/16 | 60-17-0207 | 23 | 39 | 62 | 3/8 | 4 | 2 1/2 | 6 | 1 7/8 | 1 1/2 |
| 2 15/16 | 60-17-0215 | 23 1/4 | 39 1/4 | 62 1/2 | 3/8 | 4 | 2 1/2 | 6 | 1 7/8 | 1 1/2 |
| 3 7/16 | 60-17-0307 | 23 5/8 | 39 3/4 | 63 3/8 | 1/2 | 4 | 2 1/2 | 6 | 1 7/8 | 2 |
| 3 15/16 | 60-17-0315 | 23 5/8 | 40 1/8 | 63 3/4 | 1/2 | 4 | 2 1/2 | 6 | 1 7/8 | 2 |
| 4 7/16 | 60-17-0407 | 27 | 43 1/4 | 70 1/4 | 1/2 | 4 | 2 1/2 | 6 | 1 7/8 | 2 |
| 4 15/16 | 60-17-0415 | 30 | 48 | 78 | 1/2 | 4 | 2 1/2 | 6 | 2 | 2 |
| 5 7/16 | 60-17-0507 | 30 | 54 | 84 | 1/2 | 4 | 2 1/2 | 6 | 2 1/2 | 2 1/2 |
| 5 15/16 | 60-17-0515 | 30 | 60 | 90 | 1/2 | 4 | 2 1/2 | 6 | 2 1/2 | 2 1/2 |
