"Type E" 4-Bolt Pillow Block Bearings
"Type E" Pillow Blocks are the most widely used of the "E" Series due to the variety of mounting methods. They are available in both 2-bolt base and 4 bolt base styles. All units are supplied with Timken® tapered roller bearings, dual locking collars and Royersford's exclusive dual lip, medium contact seals.

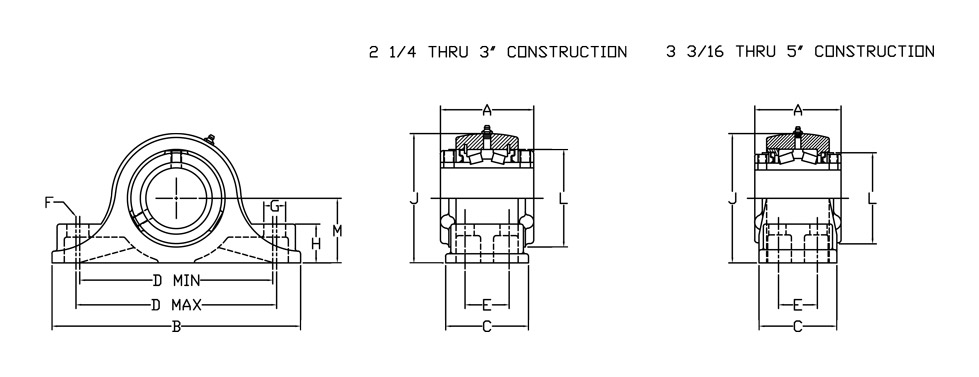

Type E Pillow Blocks - 4 Bolt Base
| Shaft Size |
Part Number |
Wt. |
A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
M |
| Min. |
Max. |
|
|
|
20-04-0204 |
|
20-04-0207
|
|
20-04-0208
|
|
19.0 |
4 |
10 1/2 |
3 1/2 |
8 3/8 |
8 5/8 |
1 7/8 ♦ |
5/8 |
7/8 |
1 5/8 |
5 1/2 |
4 1/16 |
2 3/4 |
|
|
|
20-04-0211 |
|
20-04-0212
|
|
20-04-0215
|
|
20-04-0300
|
|
26.0 |
4 1/2 |
12 |
4 |
9 5/16 |
9 11/16 |
2 1/8 ♦ |
5/8 |
1 |
1 7/8 |
6 1/4 |
4 23/32 |
3 1/8 |
|
3 3/16 |
|
3 1/4
|
|
3 7/16
|
|
3 1/2
|
|
|
20-04-0303 |
|
20-04-0304
|
|
20-04-0307
|
|
20-04-0308
|
|
44.0 |
5 |
14 |
4 1/2 |
10 13/16 |
11 3/16 |
2 3/8 ♦ |
3/4 |
1 3/16 |
2 1/4 |
7 1/2 |
5 7/16 |
3 3/4 |
|
|
|
65.0 |
6 1/4 |
15 1/4 |
4 1/2 |
12 1/4 |
12 3/4 |
2 1/4 |
3/4 |
1 1/4 |
2 7/16 |
8 1/2 |
5 15/16 |
4 1/4 |
|
|
|
81.0 |
6 3/4 |
16 5/8 |
4 5/8 |
13 1/4 |
13 3/4 |
2 1/2 |
3/4 |
1 1/8 |
2 3/4 |
9 3/8 |
6 13/16 |
4 3/4 |
|
|
|
132.0 |
7 1/4 |
18 1/2 |
5 1/8 |
15 1/4 |
15 3/4 |
2 7/8 |
7/8 |
1 1/4 |
3 |
10 7/8 |
7 13/32 |
5 1/2 |
Gray iron housing furnished unless otherwise specified.
♦ 2-Bolt Base regularly furnished insizes 2 1/4" to 3 1/2" inclusive. 4-Bolt base will be furnished when specified.
